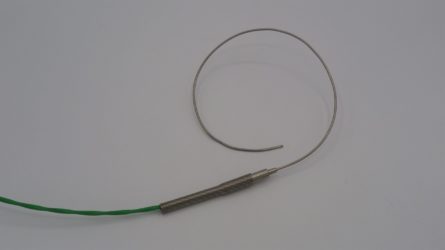

Sheathed thermocouple with extension cable.

Length and diameter of the extension cable on demand.

Termination output bare wire or by connector  : miniature connector for thermocouple, standard connector for thermocouple….

This foldable, robust and inexpensive thermocouple model is the ideal model for temperature measurements up to 1200°C in solid, liquid or gaseous media.

Teflon shielded extension cable as standard (250°C° hold), but we can manufacture this sensor with PVC, glass fiber or shielded glass fiber cable .


Product reference : CJ datasheet FP 2126
Availability : mainly in stock
Fiche technique
Consulter

Mesurex has a large stock for this thermocouple type

exemple : CJ3K100

 diameter 3 mm and lenght 100 mm mineral insulated inconel 600 with extension cable PFA screened

price level 20 €

With guaranted traceability over 5 years


Detailed description

Thermocouple type: K, J, N, E, T or S

Temperature range: from -200°C to 1200°C depending on the diameter of the sheath and the type of thermocouple

Nature of the sheath: Inconel 600 (Stainless steel 316L for type T) as standard (Stainless steel 310, Stainless steel 321, Pyrosil D, Nicrobel, … on request)

Nature of the extension: Shielded Teflon as standard held 250°C (unshielded Teflon, PVC, silicone ptfe, glass fiber, or shielded glass fiber on request)

Precision: Class 1 according to NF EN 60584-1 (Class 2 or Class 3 depending on temperature) – Standard or Special according to ASTM E230/E230M (for AMS 2750E applications)

Diameter (D): 0.5 / 1 / 1.5 / 2 / 3 / 4.5 / 6 mm

Length of the sheath (L): 100 / 300 / 500 / 1000 / 1500 mm as standard (other on request)

Length of extension (L2): 2 meters as standard (other on request)

Connectivity: bare wires, male or female connector miniature or standard size
