Mineral insulated thermocouple with miniature connector CC serie

Mineral insulated thermocouple with miniature connector CC serie
Mineral insulated thermocouple with miniature connector CC serie

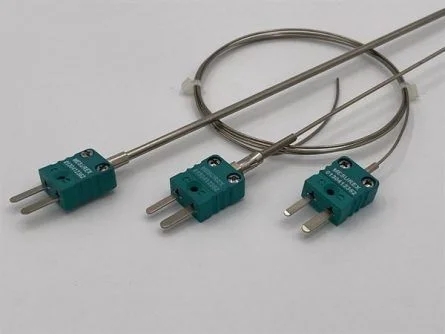

Thermocouple with semi-rigid metal sheath for all even difficult applications.

Insulated hot solder, ground or well exposed.

The user can deform, bend the sheath to adapt it to his application without altering the performance of the sensor.

Output on male or female connector miniature size (2 flat pins).

Mesurex is a specialist in the custom manufacture of thermocouples, we can adapt thermocouples to your use.


Product reference : CC datasheet FP2122
Availability : Mainly in stock
Technical sheets
Consult

For exemple we have a lot of product in stock for this reference

CC1.5K300

Ø 1.5 mm and 300mm  long with male miniature connector

Price start at 12 €

With tracability during 5 years


Detailed description

Thermocouple type: K, J, N, E, T or S

Temperature range: from -200°C to 1200°C depending on the diameter of the sheath and the type of thermocouple

Nature of the sheath: Inconel 600 (Stainless steel 316L for type T) as standard (Stainless steel 310, Stainless steel 321, Pyrosil D, Nicrobel, … on request)

Accuracy: Class 1 according to NF EN 60584-1 (Class 2 or Class 3 depending on temperature) – Standard or Special according to ASTM E230/E230M (for AMS 2750E applications)



Diameter (D) : 0,5 / 1 / 1,5 / 2 / 3 / 4,5 / 6 mm

Lenght (L) : 100 / 300 / 500 /1000 /1500 mm for standard size (others on demand)

Connector : male or female miniature size


Variations
    REFERENCEDiamètreLongueur mm
    CC0.5K1000.5100
    CC0.5K1400.5140
    CC0.5K3000.5300
    CC0.5K5000.5500
    CC0.5K10000.51000
    CC1K1001100
    CC1K2001200
    CC1K3001300
    CC1K5001500
    CC1K7501750
    CC1.5K1001.5100
    CC1.5K3001.5300
    CC1.5K5001.5500
    CC1.5K7501.5750
    CC1.5K10001.51000
    CC1.5K12501.51250
    CC1.5K20001.52000
    CC1.5K30001.53000
    CC2K1002100
    CC2K3002300
    CC2K5002500
    CC3K1003100
    CC3K3003300
    CC3K5003500
    CC4.5K1004.5100
    CC4.5K3004.5300
    CC4.5K5004.5500
    CC6K1006100
    CC6K3006300
    CC6K5006500
    REFERENCEDiamètreLongueur mm
    CC0.5j1000.5100
    CC0.5J3000.5300
    CC0.5J5000.5500
    CC1J1001100
    CC1J3001300
    CC1J5001500
    CC1J100011000
    CC1.5J1001.5100
    CC1.5J3001.5300
    CC1.5J5001.5500
    CC2J1002100
    CC2J3002300
    CC2J5002500
    CC3J1003100
    CC3J3003300
    CC3J5003500
    CC4.5J1004.5100
    CC4.5J3004.5300
    CC4.5J5004.5500
    CC6J1006100
    CC6J3006300
    CC6J5006500

Associated products
Compression fitting in stainless steel 316, BSPP, BSPT, metric size
Portable indicator for thermocouple K PN6 1 channel
Display portable temperature data logger 1, 2, 4 channels PN6 4V universal
Portable universal indicator for thermocouple PN6 1 channel
Extension for thermocouple series RAL
