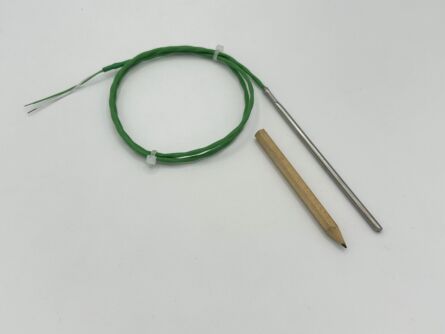

Thermocouple under rigid tube SD serie

Thermocouple under rigid tube SD serie
Thermocouple under rigid tube SD serie
Thermocouple under rigid tube SD serie

This thermocouple model is designed to meet the requirements of an autoclave.

Suitable for use in temperatures ranging from 50 to 200 °C.

Specific construction to ensure watertightness.

Product reference : SD suivant T FP 2809
Availability : Mainly in stock
Technical sheets

Detailed description

Thermocouple type : K, J, N, E, T or S

Temperature range : from -60°C to 250°C (depending on the nature of the extension cable)

Nature of the sheath : Inox 304 as standard (Inox 316L or other on request)

Nature of the extension : Shielded Teflon as standard with 250 °C resistance (unshielded Teflon, PVC, silicone, glass silk on request)

Accuracy : Class 1 according to standard NF EN 60584-1

Diameter (D) : 3 / 6 mm as standard (other on request, simplex model minimum diameter 3 mm, duplex model minimum diameter 4.5 mm)

Useful length of the tube (L) : 50 / 100 / 300 / 500 mm as standard (other on request – 500 mm maximum)

Length of the extension : 2 meters as standard (other on request)

Connections: bare wires as standard, miniature or standard male or female connector on request
