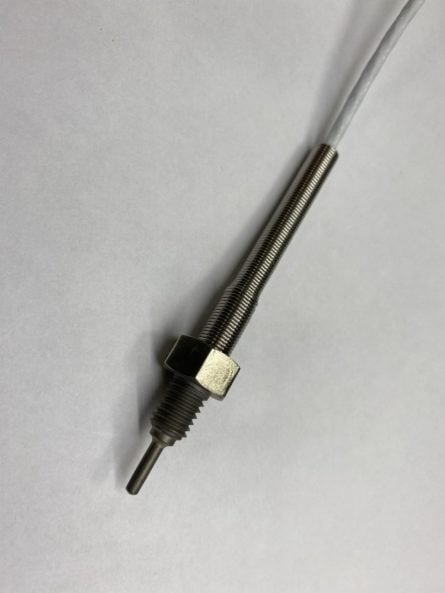

Screw-in temperature sensor type PT100.

The stainless steel fitting directly mounted on the tube ensures a good seal of the assembly.

Diameter and length under thread on request.
The assembly is one-piece in order to guarantee good resistance over time to vibrations, shocks and tightness.
The extension cable in standard version is 2 m in shielded Teflon with or without connector.
We can adapt the type of cable to the request

Example of M10x100 thread, mounting on pipes, walls and thermowells etc.

Product reference : CRR suivant FP 2146
Availability : Mainly in stock
Technical sheets

Detailed description

This model of temperature sensor type PT100, is designed for temperature measurements up to 250 ° C or more (depending on the construction) in solid, liquid or gaseous media.

It has a stainless steel connection with integrated thread M6, M8, M10, M12 (not to be specified), G1 / 4, G1 / 2, G3 / 4, NPT
Extension with a shielded Teflon, PVC, silicone cable, etc. depending on the temperature of use.

PT100 sensitive element, 2, 3, 4 wire, single or double assembly

Class A, B, 1 / 3DIN, 1 / 5DIN, 1 / 10DIN according to NF EN 60781
