Friction thermocouple LE49 B

Friction thermocouple LE49 B

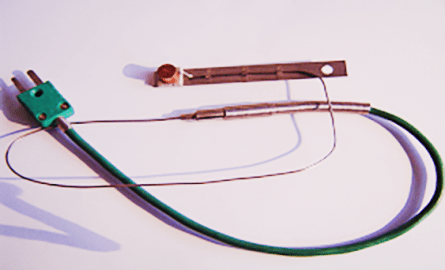

Friction sensor for measurement on a brake disc with a bronze pad shoe,

The flexible stainless steel lamella brings rigidity to the sensor.
Fixing is done by a 5 mm diameter screw.
A pyrocoax sensor in Ø1 mm – length 300 mm takes the measurement.
A shielded Teflon extension cable is used to connect to a measuring device or a display.


Product reference : LE49 B suivant FP 2239
Availability : Important stock
Technical sheets
Consult

Detailed description

Termination by miniature connector or standard K-type connector according to IEC 584-3.

Foil reinforcements for fixing the jacketed thermocouple to ensure good resistance over time.
