Surface thermocouple with 90° angle handle – LM K series

Surface thermocouple with 90° angle handle – LM K series
Surface thermocouple with 90° angle handle – LM K series

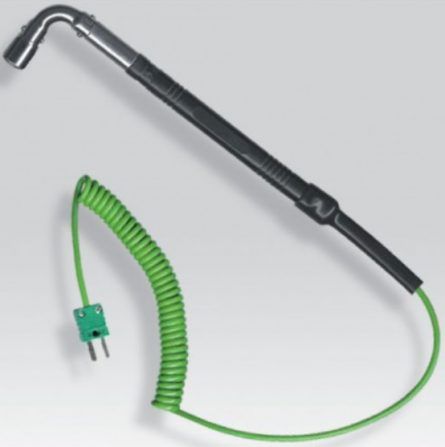

This sleeve thermocouple is intended for surface temperature measurements.

Its end is equipped with an extra fine chromel / alumel spring blade, which guarantees a very short response time.

The thermocouple is equipped with a 1-meter-long spiral cord terminated by a miniature male connector with 2 flat pins.

Connection is thus possible on many reading or measuring devices : portable display, regulator, transmitter, etc.

We can calibrate the measuring chains from our metrology laboratory.

The maximum operating temperature is 400 °C for the measuring end and 105 °C for the handle and the cable.


Product reference : LM K series - FP 2156
Availability : 2 weeks
Technical sheets
Consult

Detailed description

This thermocouple family is designed for surface temperature measurements.

There are several models:
The LM4-K sensor has a handle and a contact blade at its end.
The LM7-K sensor has a very thin contact blade, which makes it very responsive but also much more fragile.
