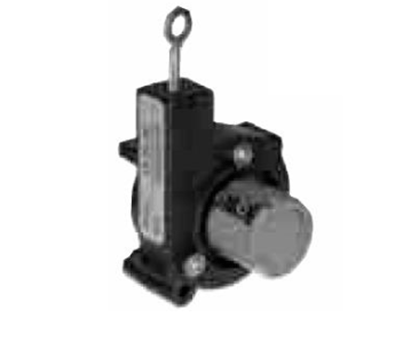

Wired position sensor with analog output DEPF

Wired position sensor with analog output DEPF

This series of linear position sensors with potentiometric analog output is compact and intended for light applications in dry environments.
It is suitable for short measuring strokes : 50, 250, 750, 1000, 1250 mm max.

This very economical version is ideal in applications requiring a small footprint and low weight.

These models are available in eleven different measuring ranges with a maximum reach of 1250 mm.


Product reference : DEPF suivant FP 2646
Availability : mainly in stock
Technical sheets
Consult

Detailed description
General
Measurement expanse (ME) mm 50 / 70 / 96 / 120 / 250 / 380 / 500 /

625 / 750 / 1000 / 1250

Sensitive element Precision potentiometer
Resolution infinite


Linearity

50 to 120: ±1.0 % ME

250 to 625: ±0.5 % ME

750 to 1250: ±0.25 % ME

Repeatability % ME ±0.03
Body Thermoformed plastic
Cable Ø0.46 mm armored stainless steel
