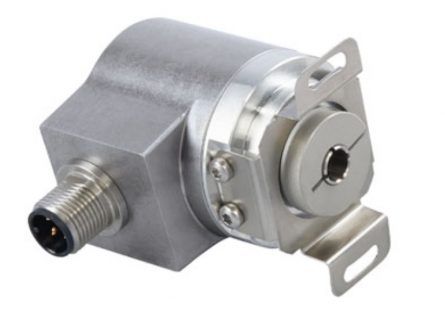

Absolute analog multiturn hollow shaft encoder CODMULTIANA-AC

Absolute analog multiturn hollow shaft encoder CODMULTIANA-AC

This multiturn absolute sensor, based on battery-less technology, converts an angular position into a4…20 mA analog signal.

As standard it measures 16 turns but the number of turns can be extended to 65536.

13-bit output resolution

Fixing by blind hollow shaft Ø10 or Ø12mm


Product reference : -CODMULTIANA-AC suivant FP2598
Availability : 2 weeks
Technical sheets
Consult

Detailed description

Power supply :  8 – 32 Vdc

Output signal : 4..20 mA

Analog precision : @ 20 mA = ±20 μA (with an ideal power supply)

Electrical linearity : 0,15%

Accuracy (INL) ±0,0878° (≤12 bits)

Protection class : IP65

Operating temperature : -40 °C to +85 °C

Humidity 98%, non condensing

16-turn multiturn resolution (default setting).
User can use scalability feature to measure up to 65,536 revolutions.
