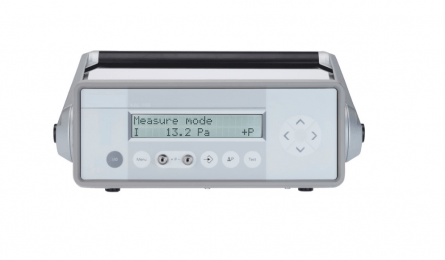

Portable pressure calibration device CALIB100 / CALIB200

Portable pressure calibration device CALIB100 / CALIB200

The CALIB100 and CALIB200 pressure standard calibrators combine both a pressure transmitter and a manometer. They allow pressure sensors and other low pressure gauges to be tested and calibrated quickly and easily. The USB interface (optional for CALIB100 and standard for CALIB200) allows connection to a PC in order to retrieve data and easily obtain calibration curves.


Product reference : CALIB100/200 selon FP2856
Availability : 2 or 3 weeks
Technical sheets
Consult

Detailed description
PARAMETERS VALUES
Measurement uncertainty CALIB100 0.2 % of the final value (for measuring range > 0 … 200 Pa/± 200 Pa)
or
0.5 % de la mesure finale (for measuring range ≤ 0 … 200 Pa/± 200 Pa)
Measurement uncertainty CALIB200 0.1 % of the final value (for measuring range > 0 … 200 Pa/± 200 Pa)
or
0.2 % of the final value (for measuring range 0 … 200 Pa/± 200 Pa)
or
0.3 % of the final value (for measuring range 0 … 100 Pa/± 100 Pa)
Hysteresis 0.1 % of the final value
Overload capacity 600 kPa (for measuring range > 3 kPa)
200 fois (for measuring range ≤ 3 kPa)
Zero point thermal drift ± 0% (cyclic zero point correction)
Influence of temperature (margin) CALIB100 : 0.04 % of the final value / K (10 … 40 °C)
CALIB200 : 0.03 % of the final value / K (10 … 40 °C)
Calibration temperature 22 °C
Fluids Air, all non-aggressive gases
Measurement input / Power supply 0 … 10 V, 0/4 … 20 mA

Measurement accuracy : 0.2 % of the final value 24 VDC / 100 mA

Display Alphanumeric display with 2 x 20 characters, backlight
Operating temperature 10 … 40 °C
Storage temperature -10 … 70 °C
Weight About 4.5 kg
Pressure fittings Ø6 mm for DN 5 mm pipe
Certifications CE
