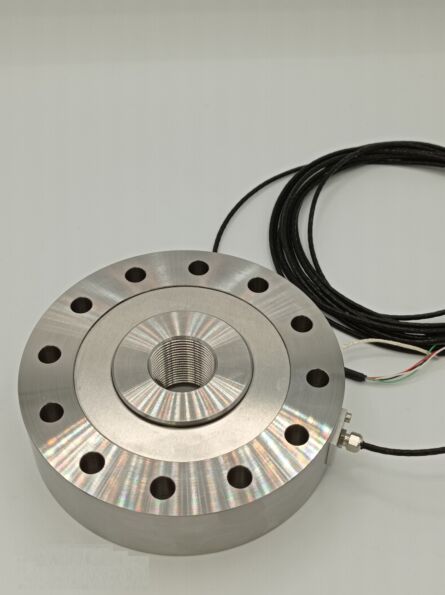

FTN3000 heavy loads series

FTN3000 heavy loads series
FTN3000 heavy loads series

The FTN3000 series load cells are particularly robust and accurate.

The internal mechanical structure makes this sensor insensitive to transverse forces.

They are particularly suitable for test benches, dynamic applications such as assembly processes or presses.

Array
Product reference : FTN300 - FP4033
Availability : stock
Technical sheets
Consult
Detailed description
Measuring range (in KN)10KN25KN50KN100KN200KN500KN1000KN
Max. overload1.5x FS1.5x FS1.5x FS1.5x FS1.5x FS1.5x FS1.5x FS
Power supply10 Vcctypical
Operational temperature-20°C to 80°C
Storage temperature-30°C to 85°C
Compensated temperature0°C à 60°C standard
Linearity / hysteresis0.1% / 0.1%
Entry impedance700 Ω
Exit impedance700 Ω
Signal at FS2.0mV/V
Output2m-long cableConnector optional
CalibrationTension / compressionOptional
Protection standardIP 50
