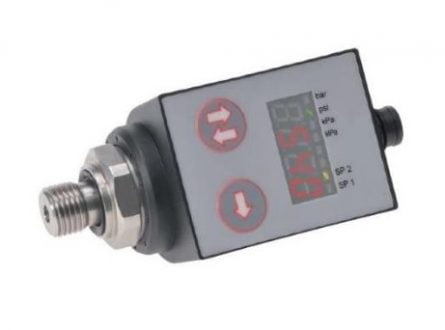

Pressure transmitter with integrated display – PRAFF

Pressure transmitter with integrated display – PRAFF

These pressure measuring devices are microprocessor controlled and user programmable.

Thanks to the configuration menu and large tactile buttons, the parameters are easily accessible.

All versions have a self-diagnosis.


Product reference : PRAFF - FP 4030
Availability : 3 weeks
Technical sheets
Consult

Detailed description

Pressure range  : 0–60| 0 –100/ 0 –160/ 0 –250/ 0 –400/ 0 –600 Bar

output signal  : 2 transistors, 4..20ma or 0..10v

Mechanical connection :

Tapping:
G ¼ With O-ring FPM
7 / 16-20 UNF Sealing on the front SAE J1926-1, ISO11926-1
¼ -18 NPT

Thread:
¼ -18 NPT
G ¼ Rear sealing DIN 3852-E with FPM profile seal
R¼ EN 10226
7/16 -20 UNF Sealing cone

The large four-digit LED display provides good readability.

These pressure transmitters are based on thick film technology with a measuring cell welded directly to the pressure connection (without seal).
