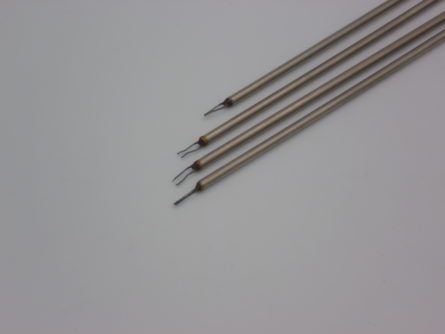

Jacketed thermocouple with bare wires output CO serie

Jacketed thermocouple with bare wires output CO serie
Jacketed thermocouple with bare wires output CO serie
Jacketed thermocouple with bare wires output CO serie

This sturdy, foldable thermocouple model is ideal for temperature measurement up to 1200 ° C in solid, liquid or gaseous environments.

The two thermocouple wires are insulated in compacted magnesia in an Inconel 600 sheath (or 316L stainless steel for the T type thermocouple).
Other sheath materials are also available on request.

MESUREX manufactures this type of thermocouple regularly according to specific requests for example diameter, length, hot weld isolated from the mass, to the mass, exposed for an optimized response time.

This thermocouple can be used immediately, but it is better to integrate a compensated connector into it.

MESUREX has stocked different types of diameters, lengths, they are available for quick troubleshooting.

Do not hesitate to consult us, a calibration certificate to complete your request is possible in our metrology laboratory.


Product reference : CO selon FP 2187
Availability : Important stock
Technical sheets
Consult

Detailed description

Type thermocouple : K, J, N, E, T or S

Temperature range : from -200 to 1200°C depending on the diameter of the sheath and the type of thermocouple

Nature of the sheath : Inconel 600 (Inox 316L for T type) as standard (Inox 310, Inox 321, Pyrosil D, Nicrobel, … on request)

Accuracy : Class 1 according to standard NF EN 60584-1 (Class 2 or Class 3 depending on temperature) – Standard or Special according to standard ASTM E230 / E230M (for AMS 2750E applications)

Diameter (D) : 0,5 / 1 / 1,5 / 2 / 3 / 4,5 / 6 mm

Length (L) : 100 / 300 / 500 mm as standard (other on request)

Connection: bare wires on 10 mm
