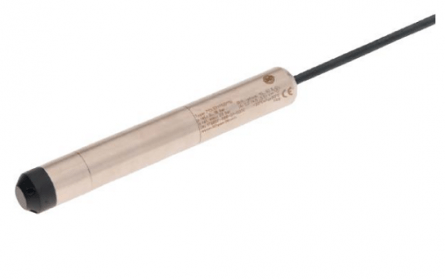

Miniature deep level probe type PNIV3

Miniature deep level probe type PNIV3

These level probes are designed to measure water pressures between 0.8 … 1.4 to 3 bar in absolute, 0 … 0.6 to 16 bar in relative.

They deliver an analog measurement signal at the output: 4..20mA, ratiometric, ratiometric with the temperature value, digital.

They are available in cable lengths from 3 to 300 meters.

The small diameter of 18.5 mm allows mounting in ¾ inch tubes.

Due to its compact construction, this probe is particularly suitable for applications where a small footprint is required.


Product reference : PNIV3 suivant FP2552
Availability : 3 weeks
Technical sheets
Consult

Detailed description

Relative pressure range : 0…0.6 to 16 bar
Absolute pressure range : 0.8…1.4 à 3 bar

Dimensions : Ø18.5 x 137.7 mm
Cable ouput : 3 to 300 m

Fluid : DRINKING WATER

Drinking water certification : ACS – WRAS
Drinking water test certificate for plastic parts : UBA certificate (KTW and elastomer), W270
