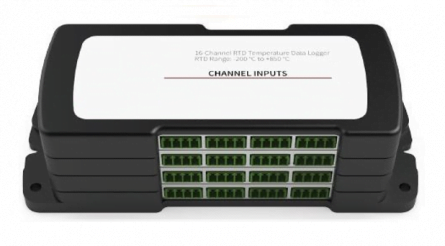

4, 8, 12 and 16-CHANNEL RTD TEMPERATURE DATA LOGGER

4, 8, 12 and 16-CHANNEL RTD TEMPERATURE DATA LOGGER

This Series consists of 4, 8, 12 and 16-channel RTD Pt100 based temperature data logger with a reading rate of up to 4 Hz.

Improvements include the elimination of an interface cable (uses standard USB-A to Micro USB),

increased memory for more readings and increased download speed.

To maximize memory capacity, users can enable or disable channels.


Product reference : EN DAT Suivant I FP 2589
Availability : steady supply

Fiche technique
Consulter

Detailed description
Temperature

Measurement Range :

18,5 Ω to 390,5 Ω-200 ºC to +850 ºC
Resolution : 0.0001 Ω

0.01 °C

 Calibrated Accuracy: ±0.015 Ω @ 25 ºC (77 °F) ambient

±0.04 °C

Specified Accuracy Range: 18.5 Ω to 175.9 Ω

-200 °C to +200 °C

Input Connection : Removable screw terminal;

2, 3 or 4 wire interface

Temperature Effect on Span: 2 ppm / ° C typical
