Vortex flowmeter for liquid 150 l/min

Vortex flowmeter for liquid 150 l/min

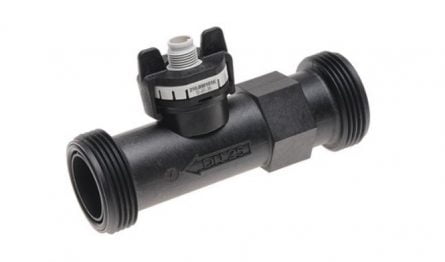

Liquid flowmeter
210 series

The Type 210 flowmeter features a wide variety of power supplies and electrical signals.
Optionally, versions with integrated temperature measurement are also available.
This flowmeter, which has no moving mechanical parts, is insensitive to pollution.
It is distinguished by a low pressure drop and very good precision.

Choice of flow measurement with voltage, current, pulse or frequency output

Temperature insensitive measuring principle

Choice of temperature measurement directly in the fluid stream

Wide operating temperature range

Low pressure drop

Measuring element insensitive to pollution

No moving mechanical parts

Drinking water certifications KTW, W270, ACS, WRAS


Product reference : -DEB suivant FP210
Availability : 4 weeks
Technical sheets
Consult

Detailed description

Flow range : 0.5…150 l/min
Nominal diameters  : ND 6 / 8 / 10 / 15 / 20 / 25
Temperature measurement : -40 … +125 ºC

Pipe  : ND 6 / 8 / 10 / 15 / 20 / 25

Accuracy for a measurement < 50% M.R. (water) < 1% M.R.
Accuracy for a measurement > 50%M.R. (water) < 2% of the measurement

Operating temperature :
Fluid < +125 ºC
Ambient -15 … +85 ºC
Ambient (2x 4 … 20 mA) -15 … +65 ºC
Storage -30 … +85 ºC

Sensor paddle ETFE

Body with obstacle PA6T/6I (40% FV)
Sealing material EPDM (perox.)




Variations
    ND Flow range l/min
    6 0,5 ...10
    8 0,9...15
    10 1,8...32
    10 2...40
    15 3,5...50
    20 5...85
    25 9...150
