Ultrasonic flowmeter QTUF serie

Ultrasonic flowmeter QTUF serie

These ultrasonic flowmeters are characterized by easy installation without the need to cut the circuit


Accuracy better than +/-1% of the measurement

LCD display of 2 lines of 20 characters

Power supply from 85 to 264 Vac or 24 Vdc

For pipe diameters from 15mm to 6 meters

Works with “clamp” sensors, in insertion or with pipe

Up to 3 inputs 3 Inputs 4 – 20 mA for the acquisition of temperature, pressure or level for example

1 x Analog output 4 – 20 mA configurable

1 x Configurable frequency output

IP67 case with optional SD card

1 x Configurable digital outputs (relays)

Product reference : QTUF
Availability : 2 weeks
Technical sheets

Detailed description

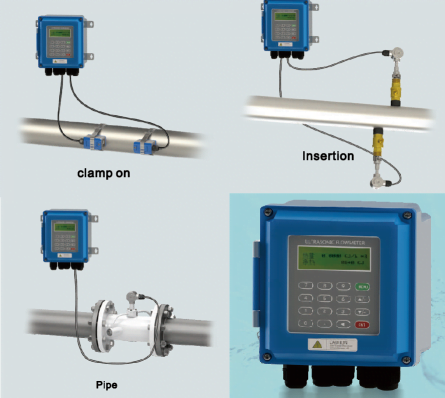

3 possible assemblies: external blocking, insertion or tube

Sensors with high temperature option up to 160°C

Choice of liquid at the time of setting: drinking water, chemical, ultrapure liquid, coolant …

Different settings exist depending on the type of pipeline

Possible registration of the return circuit
