Indicator Display Universal Input

Indicator Display Universal Input

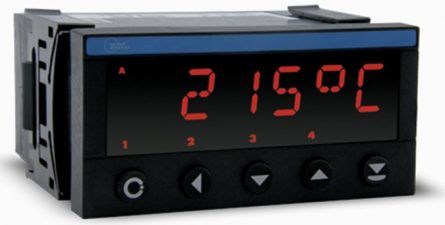

This device is a 4-digit panel indicator developed for maximum efficiency and for user comfort while keeping prices attractive.

It’s a universal input indicator with the possibility of configuring 8 different types of inputs, which are easily configurable in the device menu.

With the different input modules, it is possible to extend the DC voltage and current range.

We can also increase the number of inputs to 4 (1 universal, 3 Process 4-20mA, 0-10V).


Product reference : IN 4896 UNI suivant I FP 2116
Availability : 1 week

Fiche technique
Consulter

Detailed description
Input

Input number



 1
DC Range selectable in the menu

±60 mV >      100 MΩ Input U

±150 mV >     100 MΩ Input U

±300 mV >     100 MΩ Input U

±1 200 mV >  100 MΩ Input U



PM Range selectable in the menu

0…20 mA < 400 mV Input I

4…20 mA < 400 mV Input I

±2 V          1 MΩ     Input U

±5 V          1 MΩ     Input U

±10 V        1 MΩ      Input U

±40 V        1 MΩ      Input U





OHM Range







selectable in the menu

0…100 Ω

0…1 kΩ

0…10 kΩ

0…100 kΩ
