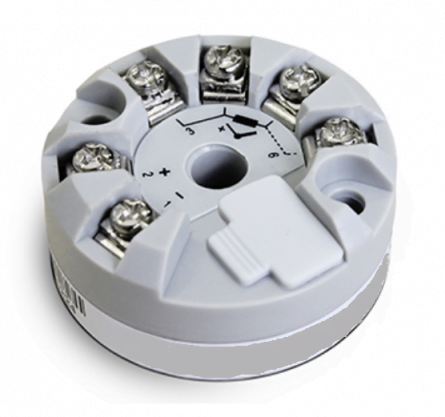

Head transmitter for PT100 pyrometric cane to 4..20 mA serie -CONVPT1004/20

Head transmitter for PT100 pyrometric cane to 4..20 mA serie -CONVPT1004/20

Mounting : Temperature transmitter converter
DIN B probe head mounting 33 mm center distance
Programmable input: (with programmable scale)
– Thermocouples type J, K, T, E, N, R, S and B
– Pt100
– PT1000
– Voltage 0 to 50 mV
Output : – 4-20 mA 2 wires
Linearized output for CTs and Pt100, Pt1000 and NTC
Cold junction compensation for thermocouples
Pt100, PT1000 2, 3 or 4 wires
Configuration by Freeware PC and smartphone connection Micro USB cable


Product reference : -CONVPT1004/20 suivant FP
Availability : Important stock
Technical sheets
Consult

Detailed description

Universal input Thermocouples J, K, T, E, N, R, S, B as well as Pt100, Pt1000 and NTC

Linearized current output 4 – 20 mA or 20 – 4 mA supplied by the loop

Cold junction compensation for thermocouples

Line resistance compensation for 3 or 4 wire Pt100

Direct configuration on PC via microUSB port and free software for Windows

Power supply : 12 to 30 Vdc

Typical accuracy for RTD : ± 0.08 % for Pt100 and Pt1000, ± 0.3 °C for NTC

Thermocouple and mV : ± 0.1 %

Temperature influence : less than 0.16 % / 25 °C

Working temperature : -40 to +85 °C

Sensor break detection according to NAMUR NE43 recommendations

Dimensions : 43.5 mm x 20.5 mm
