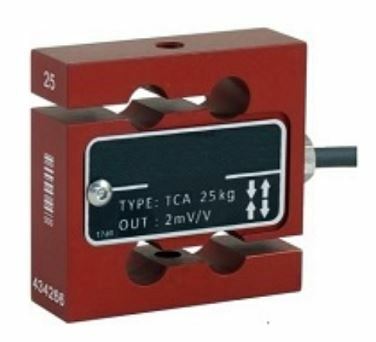

S-sensor low measurement range Type FTCSM

S-sensor low measurement range Type FTCSM
S-sensor low measurement range Type FTCSM

This type of strain gauge sensor in ALUMINUM allows the measurement of static and dynamic loads in COMPRESSION and TENSION with very good precision.

It is especially suitable for very small measuring ranges 10 N to 50 N full scale.

We offer thi sensor with our TRFO RS485 gauge bridge amplifier.
The calibration is carried out in our metrology laboratory.

Product reference : FTCSM suivant FP 2840
Availability : 2-3 weeks
Technical sheets
Consult

Detailed description
NOMINAL LOAD



125 kg
10 25 50 kg
RATED SENSITIVITY

SENSITIVITY TOLERANCE

2 mV/V

± 0.1%

TEMPERATURE EFFECT (10 ° C)
a)  on zero

b)  on the sensitivity

± 0.025 %

± 0.021 %

HYSTERESIS ± 0.03 %
LINEARITY ± 0.03 %
REPEATABILITY ± 0.01 %
