Range: 1000N to 50000 N

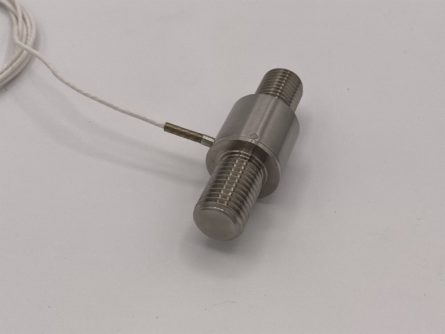

This miniature load cell sensor works in tension and compression.
The threaded connection at each end allows a very simple and compact assembly.

This small-sized load cell sensor has a wide variety of measurement ranges.
Equipped with metric threads for use in both tension and compression, these sensors must not be subjected to off-axis loads.

We adapt the length of the cable according to the needs and also offer mechanical adaptations to facilitate the assembly


Product reference : FTCP datasheet FP3100B
Availability : stock or 3 weeks delivery
Technical sheets
Consulter

Detailed description

We offer in association with these sensors displays or transmitters.

These are calibrated in our metrology laboratory and supplied with a measurement record.

Power supply: 15 Vdc
Input impedance: 1500 Ω nominal.
Output impedance: 500 Ω nominal.
Linearity and hysteresis combined: ± 0.5% FS
Initial variation due to temperature: ± 0.02% FS /°C
Temperature sensitivity variation: ± 0.05% /°C
Operating temperature: -20°C to 80°C
Compensated temperature: 20°C to 80°C
Initial offset at 23°C: +/-10mV
