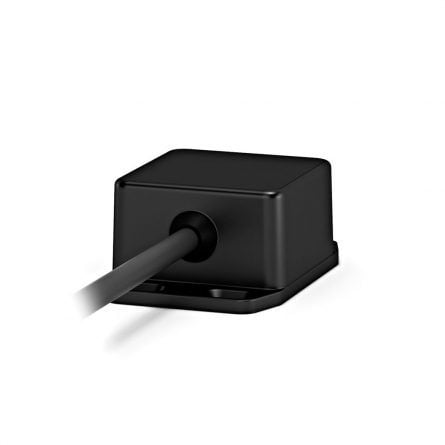

Single or dual axis inclinometer with analog output INCLIXY ANA

Single or dual axis inclinometer with analog output INCLIXY ANA

This single or dual axis inclinometer based on MEMS technology allows tilt measurement.
It has 1 or 2 analog outputs 0.5… 4.5 V or 4… 20 mA
Monoaxis  0..360 °
Biaxis +/- 10 °, +/- 30 °, +/- 60 °
Accuracy +/- 0.2 °


Product reference : INCLIXY ANA suivant FP2599
Availability : 3 weeks
Technical sheets
Consult

Detailed description

shocks : 300 g, 11 ms acc. to EN60068-2-27

Vibration : 8,2-500 Hz, 40 m/s2 acc. to EN60068-2-
610-500 Hz, 3 g acc. to EN60068-2-6

Degree of protection :    IP67

Operating temperature : -40 °C +85 °C
Storage temperature : -40 °C +85 °C

Material :                      casing in cast aluminum
Electrical output :        1m cable  or M12 connector

Resolution :                  0,05 % of the measured value
Accuracy :                   typ. ±0,2 deg (max. ±0,5 deg) only unil  ±30° for biaxis

Temperature difference :       ±0,008 deg/°C
Power supply :               7 Vdc … 30 Vdc
Power :                            30 mA max.
Protection :                  Against reverse polarity
EMC :                           according to EN 61000-6-2, EN 61000-6
