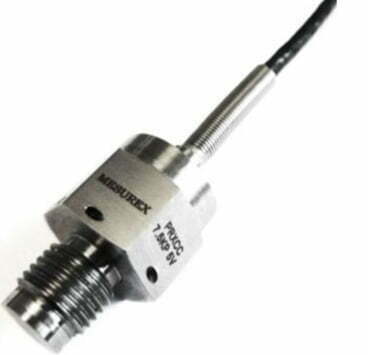

Miniature pressure sensor type P-XCC-KP5V

Miniature pressure sensor type P-XCC-KP5V

Those miniature pressure sensors are designed to perform statistical and dynamic measurements in a corrosive environment.

These flush strainless steel membrane sensors are compatible with a large number of corrosive or conductive fluids.

An integrated electronic system provides an analog voltage signal.
Electrical output by cable.

Product reference : P XCC suivant FP 103
Availability : mainly in stock
Technical sheets
Consult

Detailed description
Measurement expanse : 70/1035 Bar (1000 à 15000 PSI)
Mechanical connection :  3/8-24F-UNFJF 3A or  7/16-20F-UNJF-3A (1035 Bar)
Output signal :       0/5 V
Bandwidth : 4.5 kHz at -3 Db
Operating temperature : -40 to +125 °C
Application : Aéronautics
