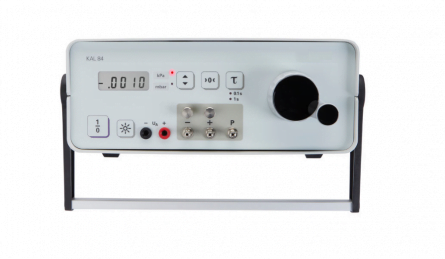

Portable pressure calibration device CALIB84

The CALIB84 standard pressure calibrator combines a pressure transmitter and a manometer. Its high degree of precision and excellent reproducibility, combined with a robust design, make it ideal for calibration and control applications. It is also portable as it works both on battery and mains power. Calibration to mmHg (optional) makes the device ideal for applications that comply with medical product regulations, such as blood pressure monitors and infusion / suction pumps.

Product reference : Calib84 selon FP2855

Availability : 2 or 3 weeks

Technical sheets

Consult

Detailed description

PARAMETERS	VALUES
Measurement uncertainties	0.2% of the final value ± 1 digit for measuring range 1… 50 kPa or 0.5 % of the final value ± 1 digit
Hysteresis	0.1 % of the final value
Zero point thermal drift	None Reset by key
Influence of temperature (margin)	0.04 % of the final value / K (10 … 40 °C)
Calibration temperature	22 °C
Fluids	Air, all non-aggressive gases
Displacement volume	About 100 cm³ (1, 10, 10 kPa) About 200 cm³ (100 Pa)
Analog output	0 … 1 V (R_L ≥ 2 kΩ) 2 outlets Ø4 mm
Screen	Liquid crystal display, 4.5 digits (digit height 10 mm)
Time constant	0.1 / 1 s (switchable)
Operating temperature	10 … 40 °C
Storage température	-10 … 70 °C
Power supply	9 V NiCd battery and mains power
Weight	About 4 kg
Pressure fittings	For pipe DN 6 mm
Certifications	CE
