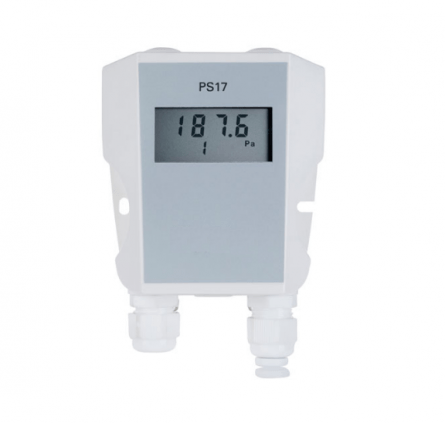

Differential pressure transmitter – TRP17

Differential pressure transmitter – TRP17

The TRP17 differential pressure sensor is a compact instrument particularly well suited to the monitoring of filters and pressures in standard HVAC applications (heating, ventilation and air conditioning), clean rooms, …


Product reference : TRP17 - FP 2852
Availability : 2 or 3 weeks
Technical sheets
Consult

Detailed description
PARAMETERSVALUES
Measuring range (available in ±)50 / 100 / 200 / 500 Pa
1 / 2.5 / 5 / 10 kPa
Pressure typeDifferential
Measurement accuracy± 1 % of set value ±0.5 Pa (for measuring ranges ≤ 250 Pa plus ±1 Pa)
Temperature coefficient span0.1 % of the preset value / K
Zero point thermal drift0.1 % of the preset value / K
Overload capacity ±25 kPa for measuring ranges ≤ 250 Pa
±50 kPa for measuring ranges > 250 Pa
 Medium Air, all the non-aggressive and non-flammable gases
Sensor response time 25 ms
Calibration temperature 22 °C
Operating temperature -10 … 70 °C, avec écran 0 … 50 °C
Storage temperature -10 … 70 °C, avec écran -5 … 55 °C
Air humidity 0 … 80 % RH
Weight About 200 g
Power consumption < 1 W (with the screen option : < 4W)
Pressure ports For DN pipe 4 and 6 mm
Protection classIP 67
CertificatesCE / UKCA
