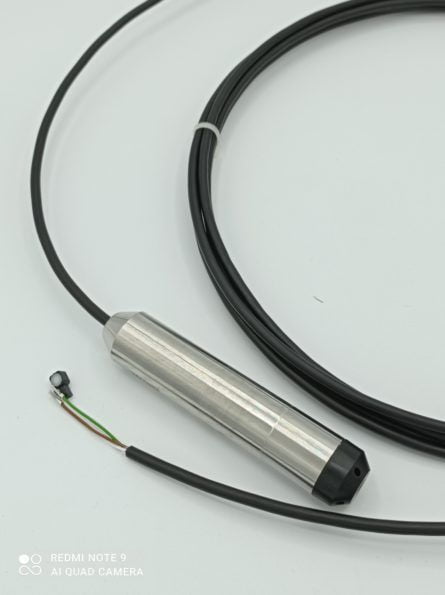

Shallow depth probe – PNIV2

Shallow depth probe – PNIV2
Shallow depth probe – PNIV2
Shallow depth probe – PNIV2
Shallow depth probe – PNIV2

These level probes are designed to measure pressures between 0.8… 1.4 to 3 bar in relative and 0… 0.3 to 2.5bar in absolute terms
They are recommended for measurement in drinking water and fuels.

They deliver an analog measurement signal in output: 0..10V, 4..20ma, ratiometric or ratiometric with in addition the temperature.

They are available in cable lengths from 2 to 30 meters.

ATEX versions with explosion protection are also offered.

Array
Product reference : PNIV2 - FP 4014
Availability : stock in 2 and 4 meters, 3 weeks
Technical sheets
Consult
Detailed description

RELATIVE pressure ranges: 0.8… 1.4 to 3 bar
ABSOLUTE pressure range: 0… 0.3 to 2.5bar

Dimensions: Ø23.4 x 116mm
Cable output: 2 to 30 meters

Explosion protections:

  • IECEx SEV 12.0006 Ex ia IIC T4
  • GaSEV 12 ATEX 0138 II 1 G Ex ia IIC T4 Ga

Burst pressure: 1.5 x system pressure

Fluid:

  • Gazoil, very light SN 181 160-2
  • Gazoil, heavySN 181 160-2
  • diesel
  • petrol
  • Drinking water (with EPDM seal)
