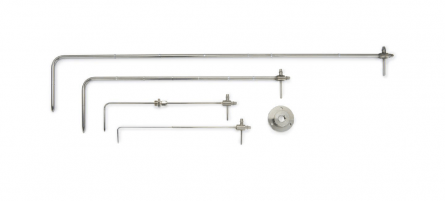

Pitot tube
The pitot tube is a device for determining the flow rate at certain points in the middle of the duct (fast measurement with repeatable measurement results). Because there is no flow of the medium through the test set-up, dust is not deposited in the pitot tubes; it can therefore also be used in contaminated media such as waste gases containing dust or media with combustion residues.
Product reference : Pitot from datasheey Pitot
Availability : 3 weeks
Detailed description
Operating temperature
OD 4 mm: max. 450° COD 8 mm: permanently up to 450°C, temporarily up to 800°C
Material
Stainless steel 1.4541, good for cleaning with solvents or compressed air
Length of probes
305 mm with 4 mm DA, 483 mm with 8 mm DA, 795 mm with 8 mm DA
