PT100-PT1000 in collapsible tube – CJ series

PT100-PT1000 in collapsible tube – CJ series
PT100-PT1000 in collapsible tube – CJ series

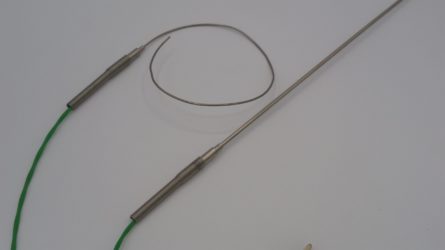

This foldable and robust PT100/PT1000 probe model is ideal for temperature measurement in solid, liquid or gas environments up to 600 °C.

Incorporates an extension cable

Do not fold the jacketed part over the last 15 mm.


Product reference : CJ series - FP 2126
Availability : Important stock
Technical sheets
Consult

Detailed description

Typeof probe : PT100 or PT1000

Temperature range : from -196°C to 600°C depending on the nature and diameter of the sheath

Nature of the sheath : Inconel 600 as standard (316L stainless steel, 310 stainless steel, 304 stainless steel, … on request)

Nature of the extension: Armored Teflon in standard withstand 250 ° C (unshielded Teflon, PVC, silicone, glass silk on request)

Accuracy : Class A, B, 1/3DIN, 1/5DIN, 1/10DIN according to standard NF EN 60751

Diameter (D) : 1,5 / 2 / 3 / 4,5 / 6   mm

Shirt length (L) : 100 / 300 / 500 mm as standard (other on request)

Extension length (L2): 2 meters as standard (other on request)

Connections: bare wires, miniature or standard male or female connector, M8, M12, DIN
