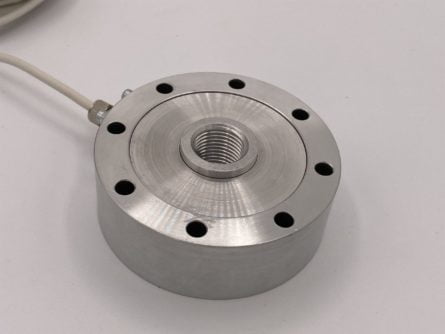

Tension/compression load cell pancake shape – FTCN series

Tension/compression load cell pancake shape – FTCN series
Tension/compression load cell pancake shape – FTCN series
Tension/compression load cell pancake shape – FTCN series
Tension/compression load cell pancake shape – FTCN series

Working range: 100 to 20,000 N

This load cell sensor is working in tension or compression

The pancake shape type is a very common shape used on many applications
Output on cable of 2 m (length adaptable to demand).
Low level signal 1.5 mV/V.(strain gage technology)
This robust sensor of good capacity is intended for uses in tension and compression in the industrial field: Fatigue tests, pushing effort, load measurement under tools, press application, weigth scale.

Its advantages are to ensure low deformation and insensitivity to transverse forces.
An IP66 protection and its stainless steel body ensure a very high robustness.

We associate these sensors with digital / analog transmitters or USB adaptator we calibrate from our metrology laboratory




Product reference : FTCN series - FP 3400
Availability : stock
Technical sheets
Consult

Detailed description

We offer in association with these sensors displays or transmitters.

These are calibrated in our metrology laboratory and supplied with a measurement record.

Power supply: 10 Vdc
Operating temperature: -20°C to 80°C (High temperature option)
Storage temperature: -30°C to 85°C
Compensated temperature: 0°C to 60°C
Accuracy: 0.1% FS
Input impedance: 350 to 700 Ω
Output impedance: 350 to 700 Ω
Signal at EM: 1.5 mV/V
Connector output: + 2m cable
Optional: IP Protection Rating 66
